Source transformation in a simple circuit

In a simple electrical circuit, to find the current or voltage through an element in the circuit we use different techniques such as :- Mesh analysis, Nodal analysis, Star to delta and delta to star conversions, Source transformation etc.

One of the e…


This content originally appeared on DEV Community and was authored by 221910301019

In a simple electrical circuit, to find the current or voltage through an element in the circuit we use different techniques such as :- Mesh analysis, Nodal analysis, Star to delta and delta to star conversions, Source transformation etc.

One of the easiest methods of solving a circuit is source transformation technique.

Source transformation :-

As we know, there are two types of sources in a simple circuit that are Current source and Voltage source. To solve a simple circuit we can use the source transformation technique in the following way.

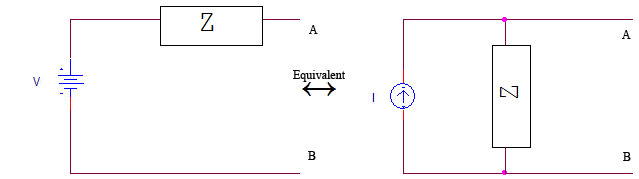

Alt Text

In this figure, the voltage source circuit is transformed into a current source circuit and vise versa with just a simple formulas and modifications in the circuit.

Considering the voltage source to current source scenario:-

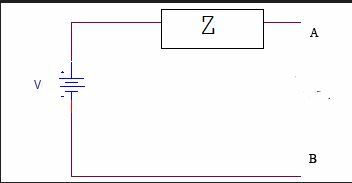

Alt Text

This voltage source circuit can be transformed into a current source circuit by replacing the resistance Z from series “multiplier” to parallel “shunt” and replacing the voltage source with current source with simple formula of I=V/Z

where I = current, V = voltage and Z = resistance in series with voltage source.

We finally get the circuit:-
Alt Text

Considering the current source to voltage source scenario:-
Alt Text

This current source circuit can be transformed to voltage source by replacing the “shunt” resistance Z in series with the voltage source as “multiplier”. The current source is replaced by voltage source and it can be calculated by V=I x Z

where V= voltage, I= current and Z= parallel resistance.
Finally we get the circuit as:-
Alt Text
